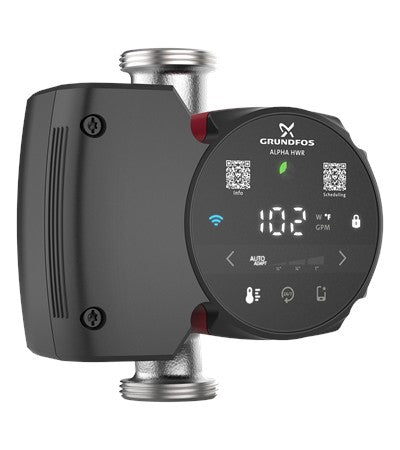

Grundfos ALPHA HWR 15-29 SU/T High-Efficiency Hot Water ECM Circulator, part 92603113
Grundfos ALPHA HWR 15-29 SU/T High-Efficiency Hot Water ECM Circulator, part 92603113
Grundfos ALPHA HWR 15-29 SU/T High-Efficiency Hot Water ECM Circulator, part 92603113
Estimated Delivery
Contact us for the delivery timeframe for this product.
$436.95
Checkmark Free Shipping!

Grundfos 92603113 ALPHA HWR 15-29 SU/T Stainless Steel Hot Water Circulator Pump, NPSM, 21W, 14 GPM, 115V

  • Marca Grundfos
  • Disponibilidad Envío directo
  • SKU 92603113

High-efficiency ECM domestic hot water recirculator for systems with a dedicated return line; Brand: Grundfos; Model #: 92603113; Series: ALPHA HWR; 115V; Stainless steel housing; Union connections; Integrated temperature control and timer.

California Proposition 65: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

  • 14 GPMFlow Rate
  • 115VVoltage
  • 7.48 in HDimensions

Need Help?

Talk to our commercial support team.
Hablamos Español!

(248) 892-1000

Find a Replacement

Find the right replacement for your current model.

Find My Replacement

Product Resources

Manuals, specifications and product documents.

View Documents

Commercial Purchasing Support

Get help with sizing, product selection and ordering.

Contact UsShipping FAQs

Brand Grundfos
Part Number 92603113
Product Type Circulator Pumps
Application Domestic Hot Water Recirculation
Amperage 0.41 A
Pressure 2.2 PSI
Flow Rate 14 GPM
Housing Material Stainless steel
Maximum Head 9.51 ft
Minimum Temperature 36 °F
Maximum Temperature 203 °F
Power Source Connecting plug
Phase 1
Voltage 115V
Power 21 W
Connection Type NPSM
Frequency 60 Hz
UL Listed Y
End Connection Inlet NPSM
End Connection Outlet NPSM
Fitting Size 1 1 1/4 in
Fitting Size 2 1 1/4 in
Impeller Material Composite
Port-to-Port 5.9 in
Length 5.9 in
Width 7.72 in
Height 7.48 in
Weight 5.16 lb
California Proposition 65 Warning applies; see product description
