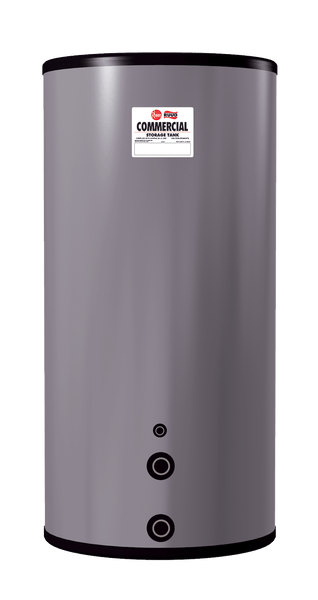

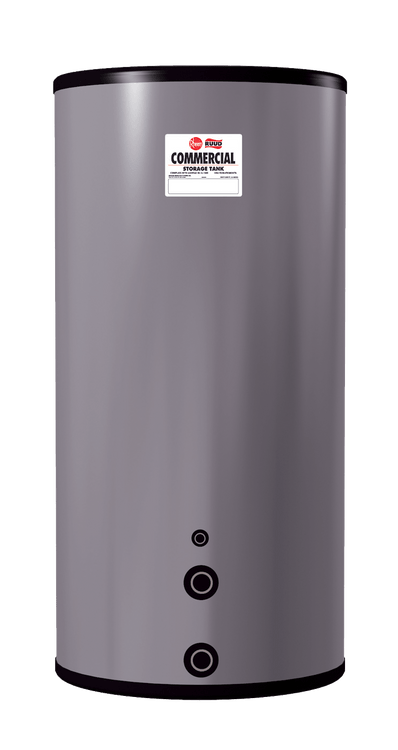

RHEEM ST500A 504 Gallon ASME Commercial Storage Tank

  • Brand Rheem
  • Model:ST500A
  • Availability Drop Ship
  • SKU ST500A

When used in tandem with Rheem commercial water heating equipment, these storage tanks provide the flexibility needed for many commercial applications. Installed individually, or manifolded, these storage tanks can provide 80% draw capability without an appreciable temperature decrease in single temperature applications.

  • 504 galTank Capacity
  • 94 1/2" H × 46" Dia.Dimensions

Need Help?

Talk to our commercial support team.
Hablamos Español!

(248) 892-1000

Find a Replacement

Find the right replacement for your current model.

Find My Replacement

Product Resources

Manuals, specifications and product documents.

View Documents

Commercial Purchasing Support

Get help with sizing, product selection and ordering.

Contact UsShipping FAQs

Brand Rheem
Model ST500A
Warranty 5 Years
ASME Yes
Top Water Connections 2"
Weight 1765 lbs
Gallons 504 gal
Front Water Connections 3"
ASHRAE Compliant Yes
Max PSI 125
Height 94 1/2"
Diameter 46"
Relief Valve Opening 1-1/4" NPT
Aquastat Opening 3/4" NPT
Foam Insulation 2"
