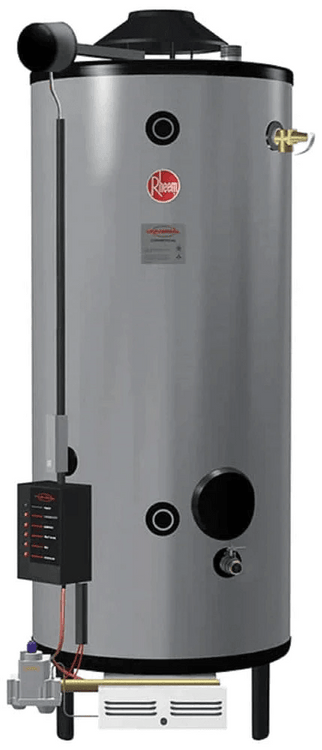

RHEEM G100-200 Universal 100 Gallon Commercial 199,900 BTU Water Heater Natural Gas

Estimated Delivery

Contact us for the delivery timeframe for this product.

Click here to sign in or create an account to view your account pricing and discounts.

$5,350.00

Checkmark

Free Shipping!

RHEEM G100-200 Universal 100 Gallon Commercial 199,900 BTU Water Heater Natural Gas

Brand Rheem
Model:G100-200
Availability In Stock
SKU G100-200

Commercial 100 Gallon Universal 199,900BTU Natural Gas Water Heater; Brand: Rheem; Model #: G100-200; Series: Rheem Universal; Automatic Flue Damper; Direct Spark-to-Pilot Ignition System; 3-Year Limited Tank Warranty; Space Saver Design; Used in Motels, Hotels, Gyms, Schools, Restaurants, and Businesses.

100 galTank Capacity
199,900 BTUInput BTU
Natural GasFuel Type
80%Efficiency
StandardVenting
73 1/16" H × 30 1/4" Dia.Dimensions

Need Help?

Talk to our commercial support team.
Hablamos Español!

Find a Replacement

Find the right replacement for your current model.

Find My Replacement

Product Resources

Manuals, specifications and product documents.

Commercial Purchasing Support

Get help with sizing, product selection and ordering.

Contact Us Shipping FAQs

Brand Rheem

Model G100-200

Warranty 3 Years

Fuel Type Natural Gas

Weight 780 lbs

Gallons 100 gal

BTU 199,900 BTU

Efficiency 80%

Height 73 1/16"

Diameter 30 1/4"

Vent Size 6"

Vent Type Standard

Brand	Model	BTU/h	Gal.	Efficiency	Dia.	Height
American	BCG3-100T200-8N	199,000	100	80%	30-1/4"	72"
A.O. Smith	BTR-200	199,000	100	80%	30-1/4"	72"
Bradford White	D-100S-199-3N	199,000	100	80%	30-1/4"	76-3/4"
Lochinvar	CGN199 100	199,000	100	80%	30-1/4"	72"
State	SBD100 199NES	199,000	100	80%	30-1/4"	72"

Pilot/Ignitor Assembly SP10764B

Ignition Control w/Cable SP10763C

Thermostat SP11798B

Temperature and Pressure Relief Valve (T&P) SP9013D

Gas Valve - NG SP10963D

Gasket - Handhole Cleanout Plate SP5886

Door Assembly - Louvered AM23664

Handhole Cover - Black AM3459-H

Flue Baffle Assembly AM38485B

LED Assembly w/ Cover AM38875

Dip Tube/Nipple - 1-1/2 in. diameter x 40-1/2 in. long AP10500E-2

Handhole Seal Plate AP11262B-1

Wiring Harness - Damper AP11314C-3

Wiring Harness AP11327-5

Anode Rod - 0.840 in. diameter x 42-3/16 in. long - Magnesium AP11524S

Burner Tube - Commercial SS AP11537

WARRANTY RHEEM COMM 3YR 3T1P AP11828-4

Snap Bushing - 3-1/2 in. AP11843

LED Assembly AP12105-1

Vent Hood Damper Assembly - 9 in. by 6 in. AP15561-1

Orifice - Burner AP5300V-18

Snap Bushing - 7/8 in. AP5316B-4

Snap Bushing - 1-5/16 in. AP5316C-4

Snap Bushing - 2 in. AP7733-2

Nipple - Plastic Lined (1-1/2 in. NPT x 8-1/2 in. long) AP8999AF-5

Handhole Yoke AS24346-1

Burner Assembly - NG / Includes Gas Valve, Pilot Assy AS36669F-5

Pilot Tube AS36950F

Transformer SP10550B

Drain Valve - Brass SP12231B

Handhole Assembly SP22079

Power Switch - On/Off SP8825

Ignition Cable SP8828G

Parts may vary on older models. Please contact our team with your water heater’s serial number to confirm the correct part numbers before ordering.

Documents & Resources

warranty

California, Colorado, Utah must order the GNU100-200
Texas must order the GN100-200
